Strip Faceting Machines
SF-3 CNC- Strip Cutting & Faceting

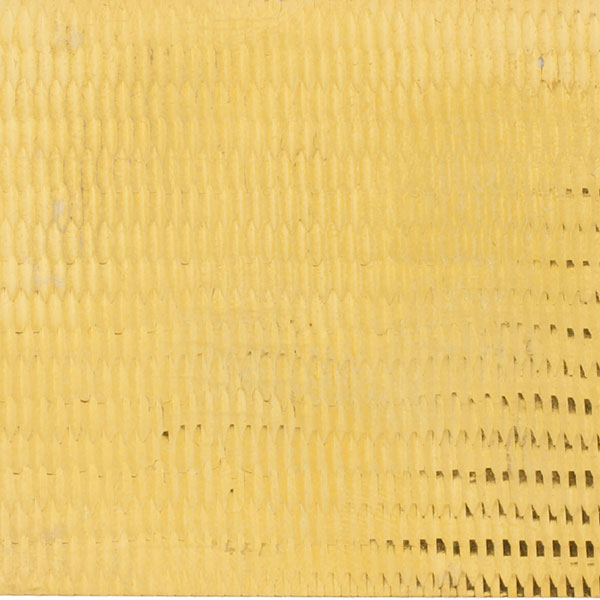

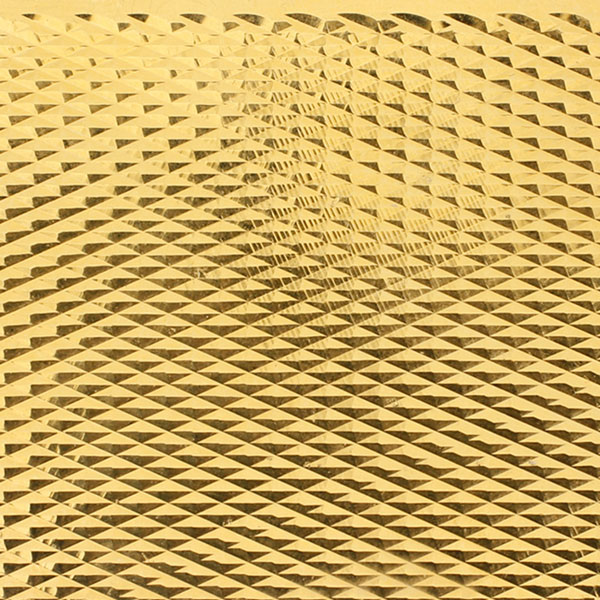

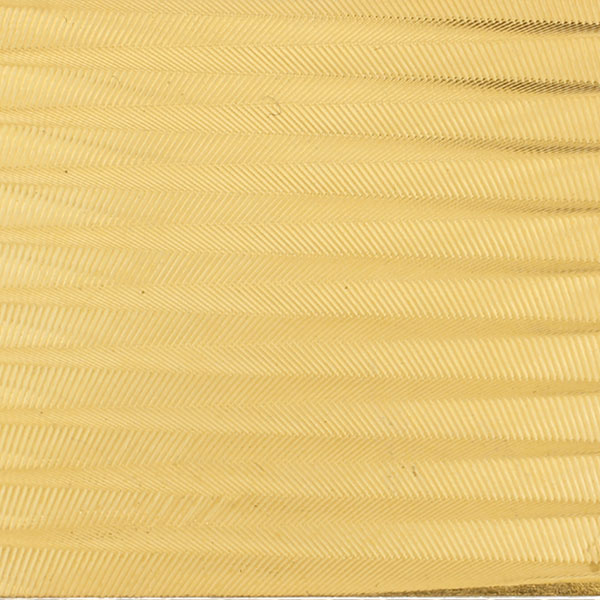

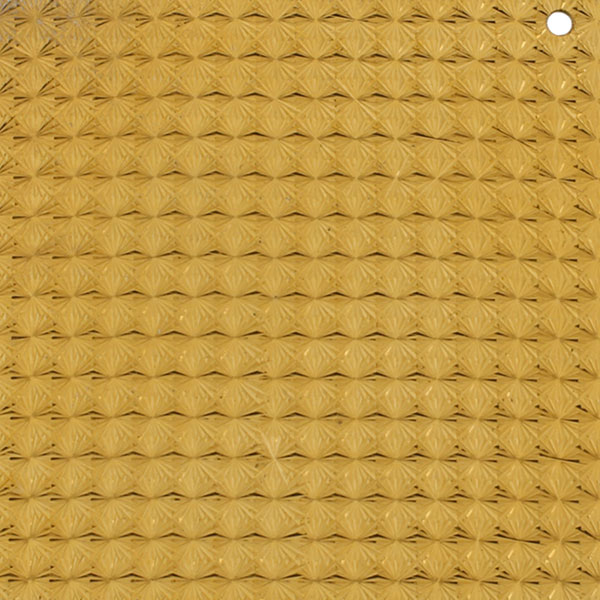

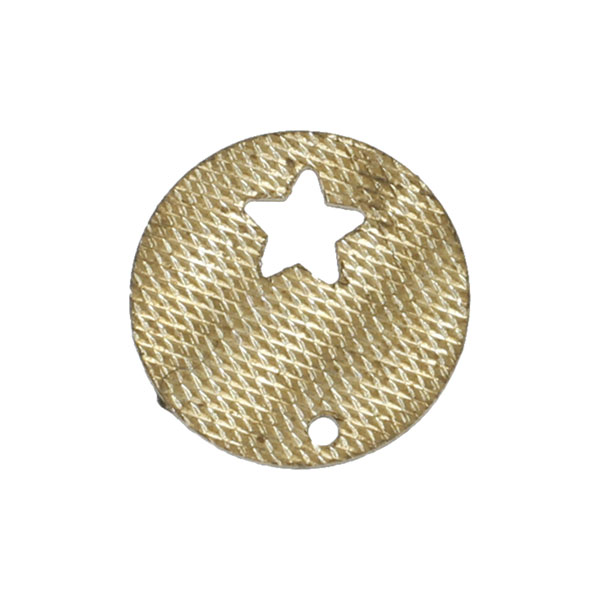

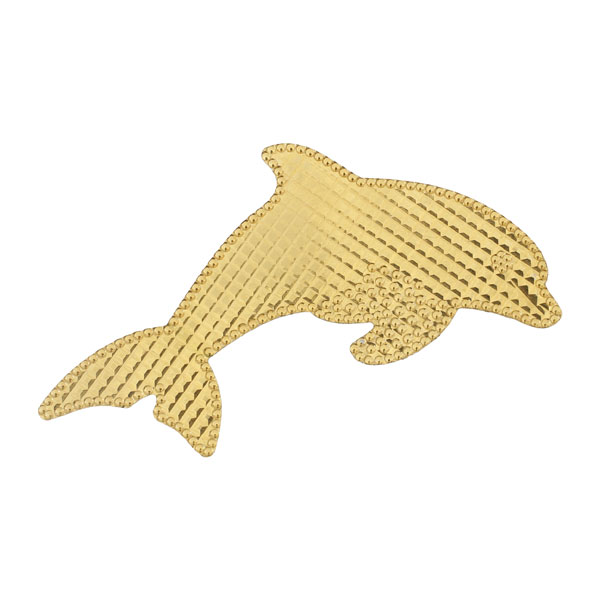

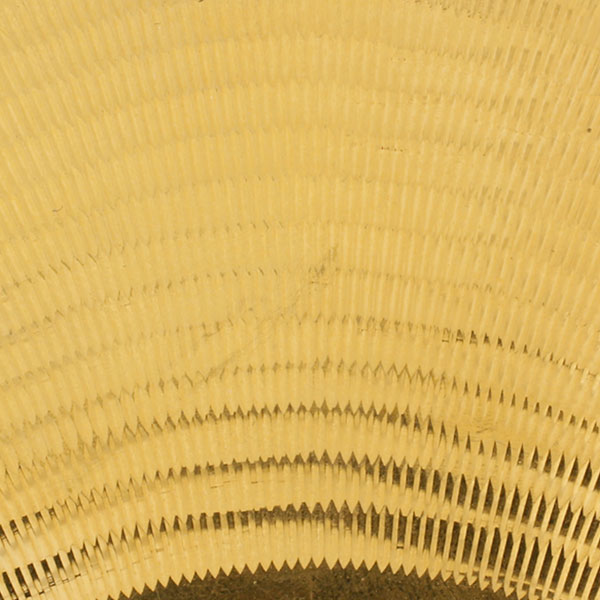

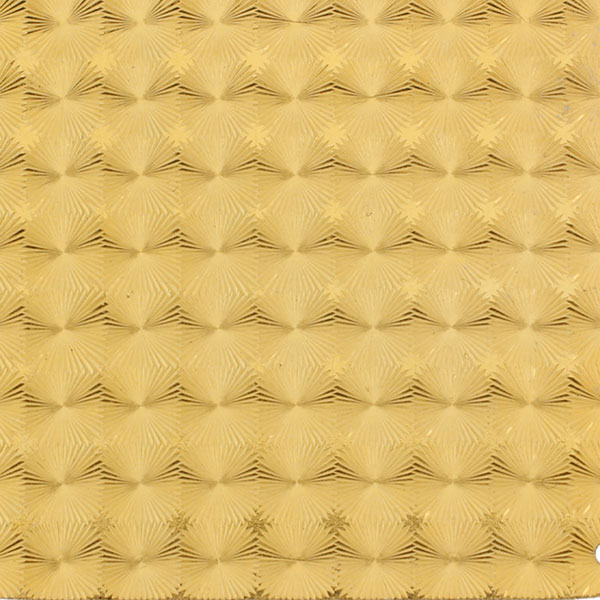

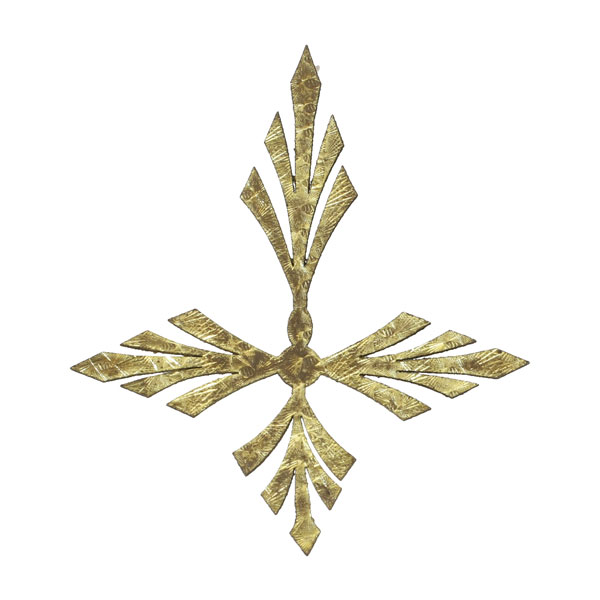

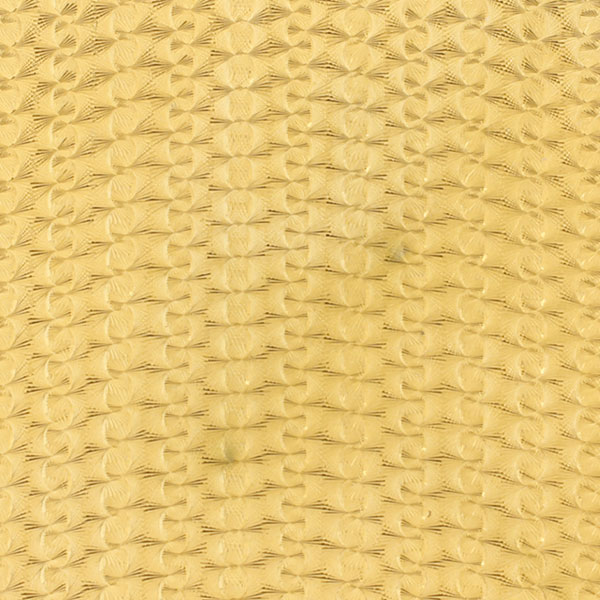

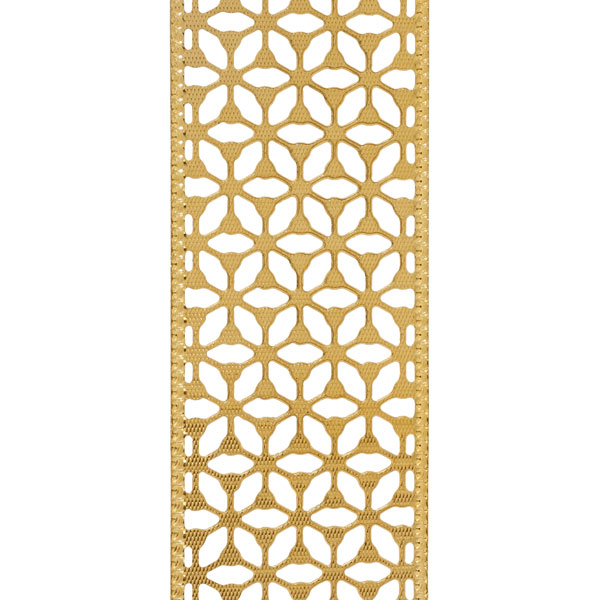

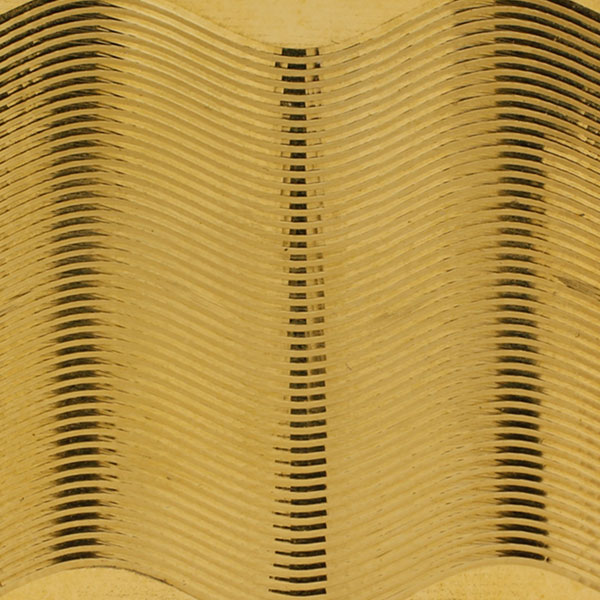

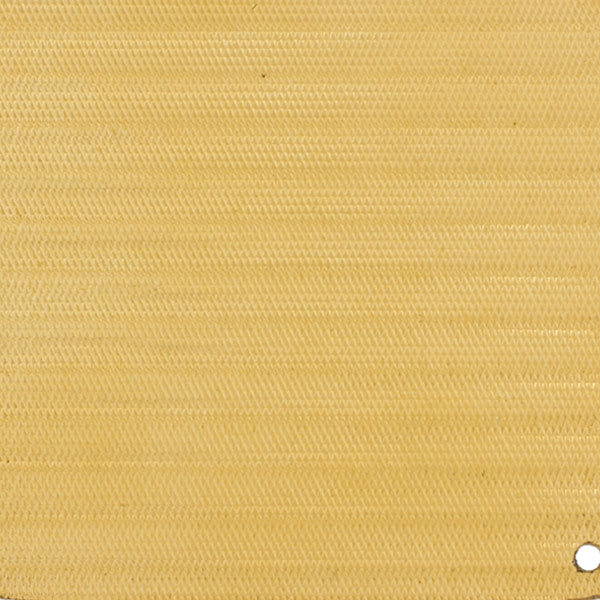

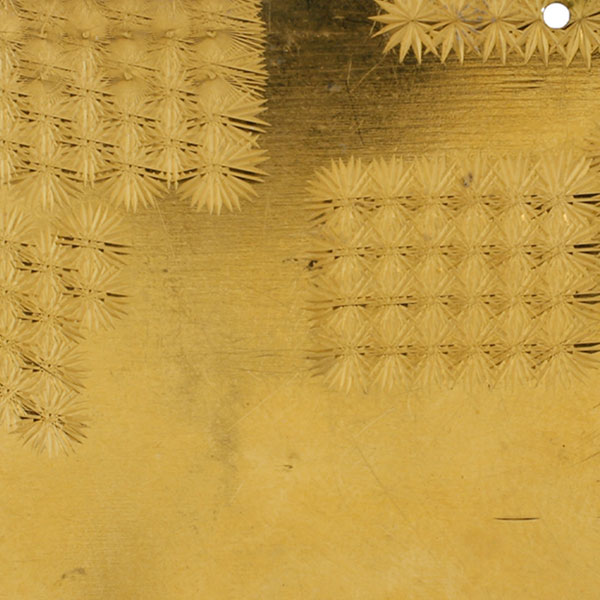

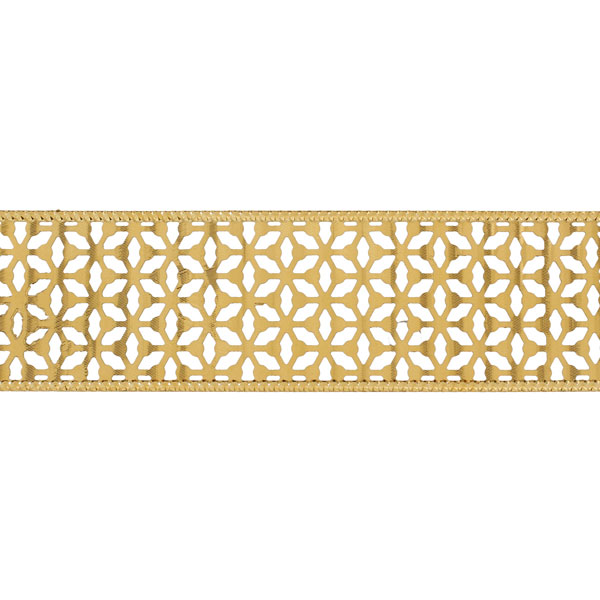

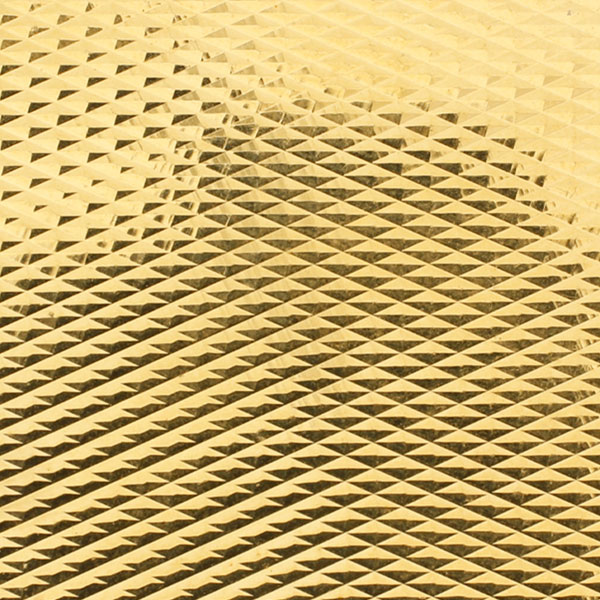

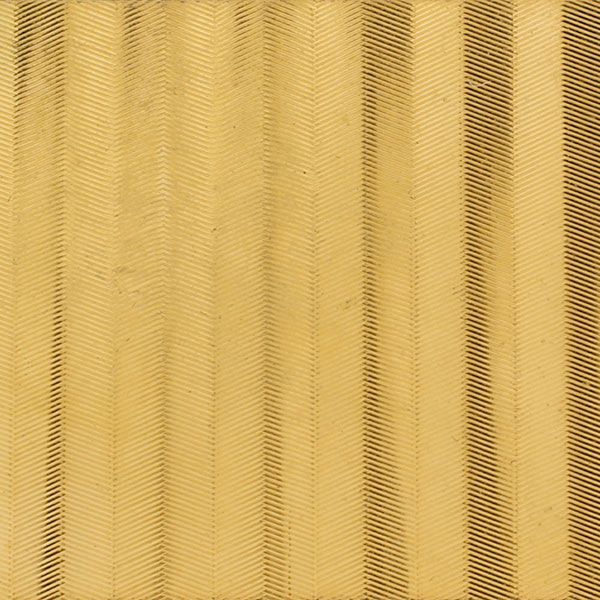

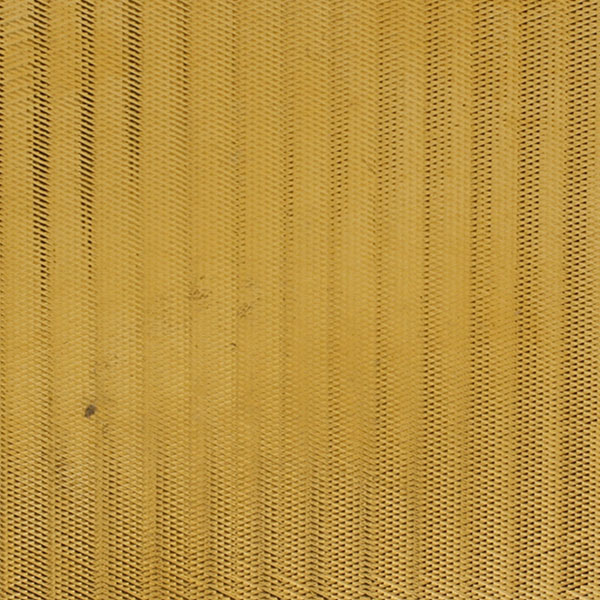

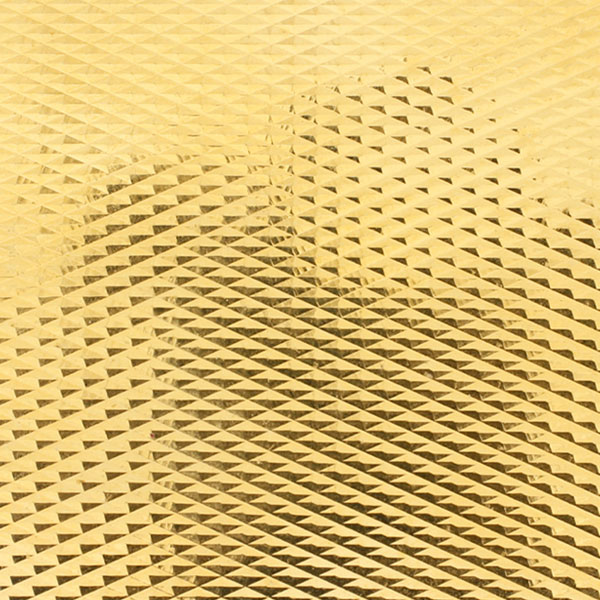

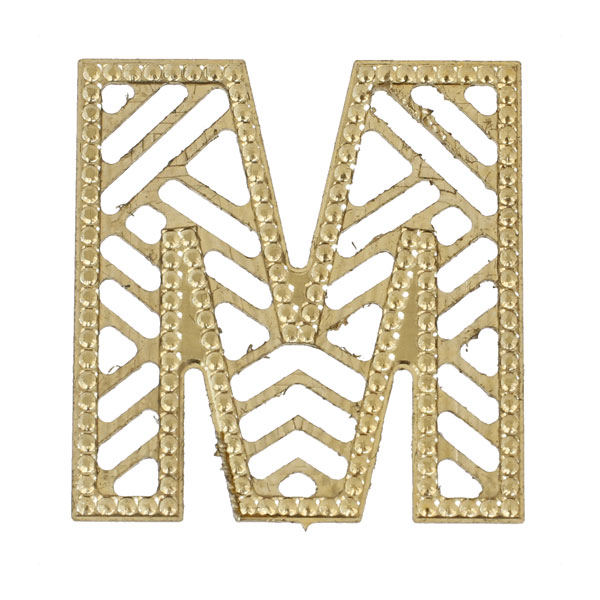

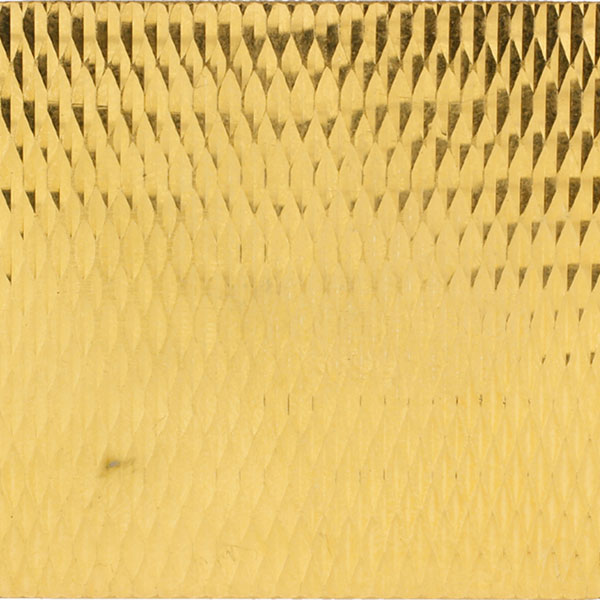

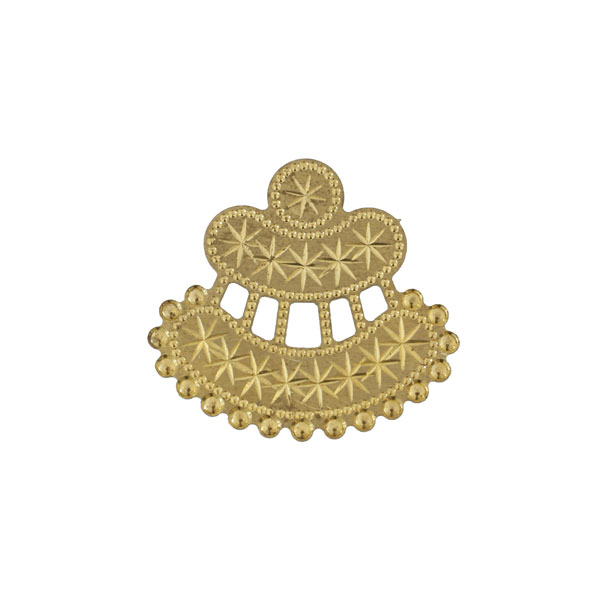

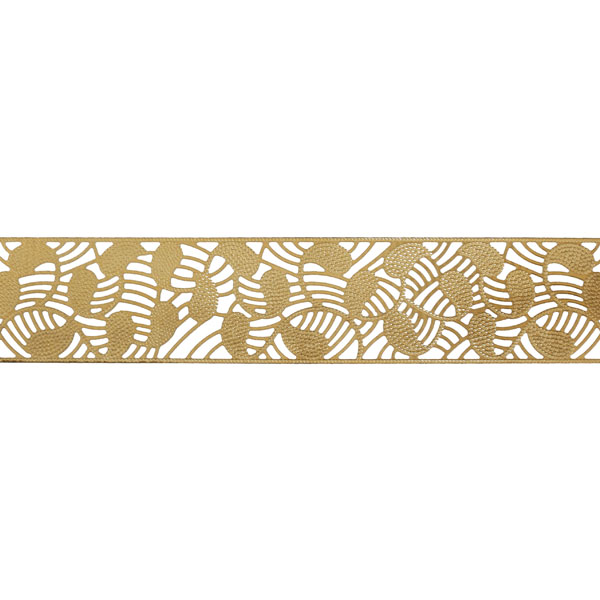

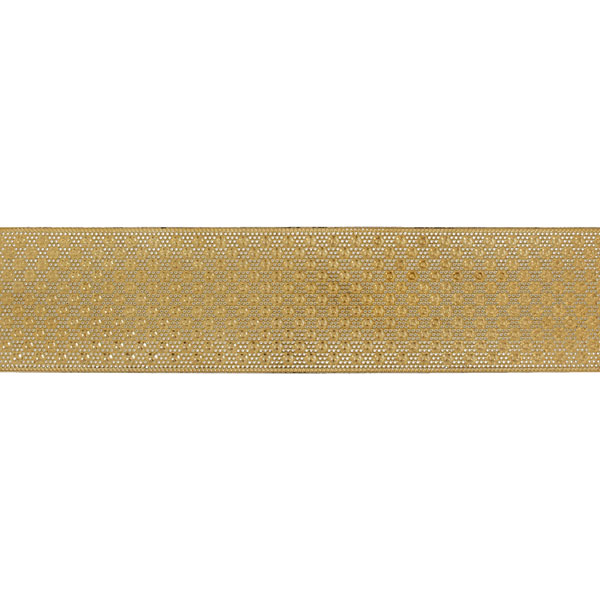

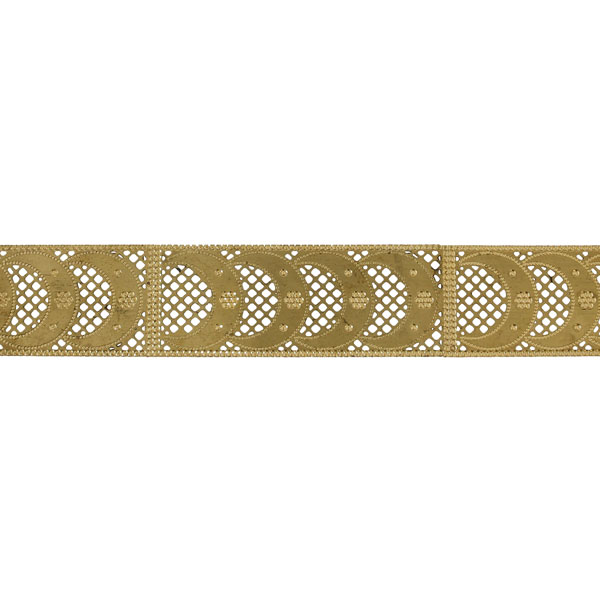

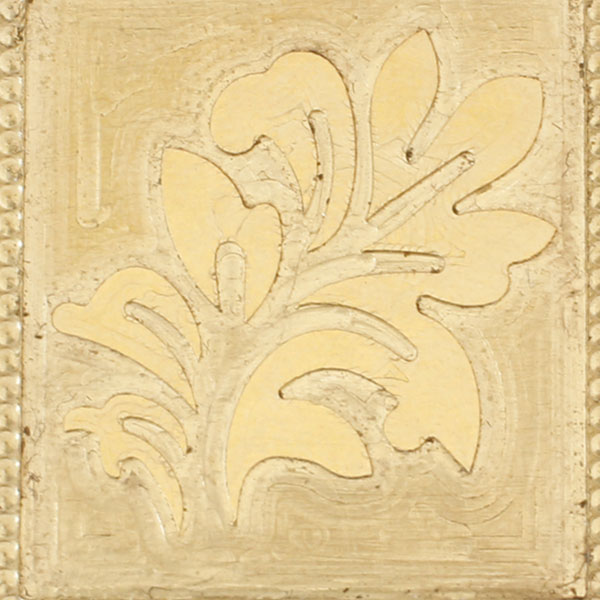

The SF-3 is a CNC-controlled strip cutting and faceting machine engineered for intricate decorative designs. Designed for professional jewellery applications, it delivers flawless horizontal textures and vertical floral 2D patterns with exceptional precision and surface quality on metal strips up to 200 mm length, 80 mm width, and 0.30–1.5 mm thickness.
- Dual spindles (horizontal 35,000 RPM & vertical 4,000 RPM) for detailed decorative finishing.
- 7 control axes (X, Y, Z, A, W, SP1, SP2) with 4-axis simultaneous operation for complex designs.
- Equipped with 10 ATC and vertical tool teach for automatic tool calibration, powered by 3-phase 440 V, 3.5 kW, and 6-bar air support.
